特 點 Features

● 常規通用。General purpose.

● 結構緊湊，體積小，性價比高。

Compact structure, small size, high cost performance.

應 用 Application

● 抑制沿電源線傳輸?shù)墓I(yè)無線電干擾。

Suppress industrial radio interference transmitted

along the power line.

性能指標 Characteristcs

產品型號表 Filter Table

型號 model	接線方式：輸入輸出			額定電流A Rated curren	接地電容量nF Grounding capacity	放電電阻KΩ resistance	電路圖Fig. Circuit diagram	外形尺寸Fig. Outline Drawing
YX-311-5-	TT	WW		5	6.8		1	1/2
YX-311-10-	TT	WW		10	6.8		1	1/2
YX-311-16-			SS	16	6.8		2	3
YX-311-20-			SS	20	6.8		2	3
YX-311-25-			SS	25	6.8		2	3
YX-311-30-			SS	30	6.8		2	3
YX-311-50-			SS	50	6.8		2	4
YX-311-100-			SS	100	50	680	3	5
YX-311-150-			SS	150	50	680	3	5
YX-311-200-			SS	200	50	680	3	6

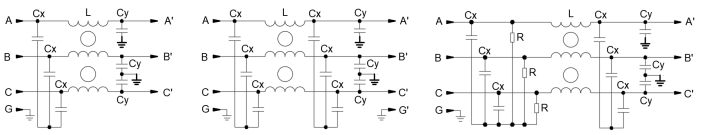

電原理圖Typical Circuit Diagram

Fig.1 Fig.2 Fig.3

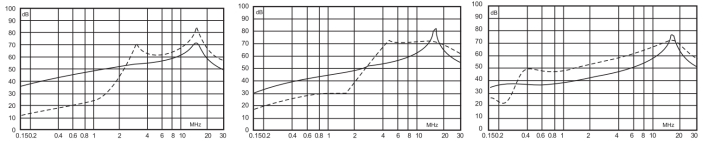

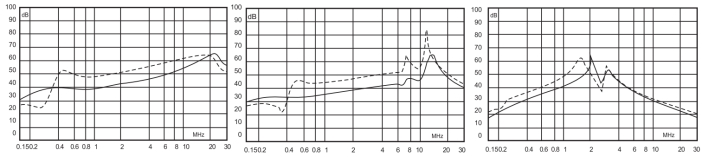

插入損耗 Insertion LOSS in dB (50Ω測量系統，IEC/CISPR No.17號出版物)

5A 10A 16A~25A

30A 50A 100A~200A

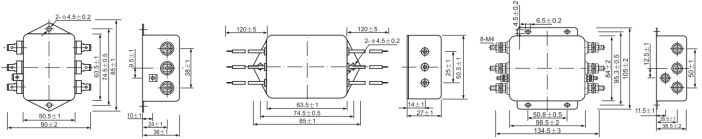

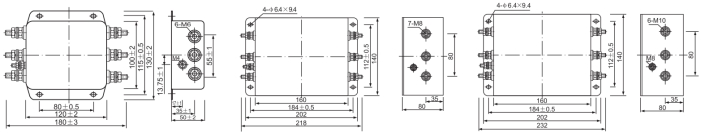

外形尺寸圖 Outline Drawing : mm

Fig.1 (5~10A) Fig.2 (5~10A) Fig.3 (16~30A)

Fig.4 (50A) Fig.5 (100~150A) Fig.6 (200A)
